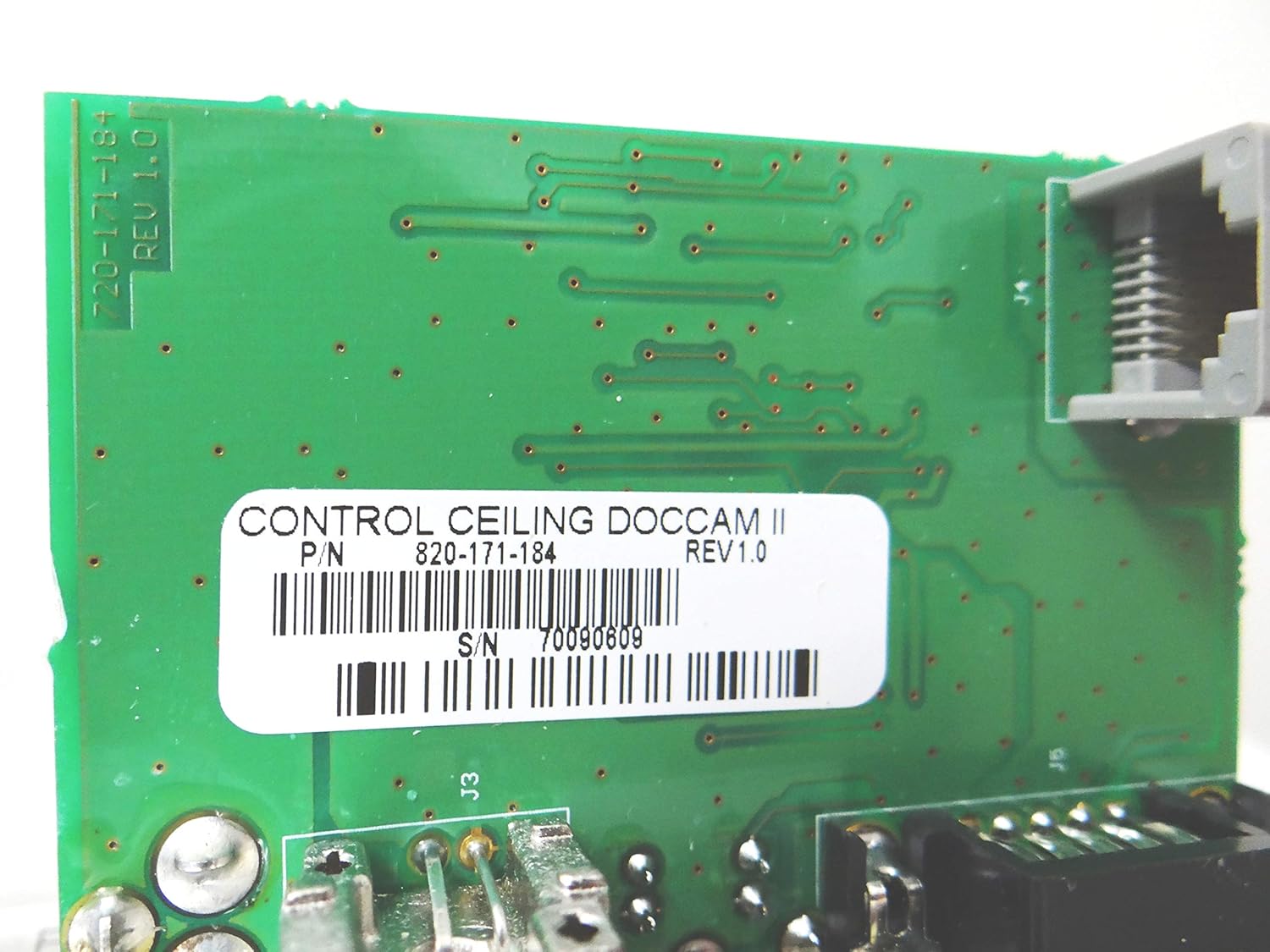

The Ken-A-Vision 910-171-066 CeilingDocCam with CCD camera sensor, and six zoom setting up to 300x total magnification is ceiling-mounted for an overhead view of an area. The field of view ranges with the height of the camera, and can be set from .06 x .09 ft. to 3.96 x 5.28 ft. Remote control operation controls zoom, white balance, brightness compensation, and iris settings. The camera is NTSC-compliant with composite, S-video, or RS232 output capabilities and is compatible with monitors, televisions, video projectors, and video conferencing systems. The camera includes remote control, mounting hardware, wall plate, cables, and adapters. Specifications Camera Sensor CCD Output resolution 480 lines Field of view Varies by distance between camera and specimen, ranges from .06 x .09 ft. to 3.96 x 5.28 ft. Output connection Composite, S-video, RS232 Light sensitivity 2.5 lux Magnification Up to 300x with six zoom settings Zoom 25x optical, 12x digital Weight 1.81kg Enclosure 11.43 x 16.51 cm, Plenum-rated Power source 12V DC, 100-240V Microscopes are instruments used to enhance the resolution of an object or image. Types include compound, stereo, or digital. Compound microscopes use a compound optical system with an objective lens and an eyepiece. Stereo microscopes show object depth in a three-dimensional image. Digital microscopes are used to display an image on a monitor, rather than looking through a lens. Microscopes can have monocular (one), binocular (two), or trinocular (three) eyepieces, with varying magnification abilities. Magnification ability refers to the size of an image. Resolution, also known as resolvant power, refers to the clarity of the image. The interaction between field of view (FOV), numerical aperture (NA), and working distance (WD) determines resolution. Microscopes can control magnification through a fixed focus, or through a range of adjustments. They can also utilize LED, fluorescent, and mirror light sources to help control viewing capabilities. Microscopes are widely used in education, lab research, biology, metallurgy, engineering, chemistry, manufacturing, and in the medical, forensic science, and veterinary industries. Ken-A-Vision Manufacturing, founded in 1957 and headquartered in Kansas City, MO, manufactures educational products such as microscopes, cameras, and software. What’s in the Box? Ken-A-Vision 910-171-066 Ceiling Cam Remote control Trim ring Camera enclosure Single wall plate Tile support rail 12V DC power supply 50 ft. Cat. 5 cable with RJ-45 jacks 25 ft. S-video cable BNC to RCA adapter Hardware AAA batteries (2) Instructions
